Multi-layer standard waveform spring Including multi-layer standard type and flat head type, the features are that they can provide ideal elasticity within a smaller installation space, 50% savings in...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

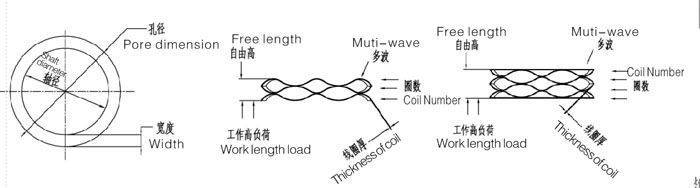

Including multi-layer standard type and flat head type, the features are that they can provide ideal
|
编号
Item |
配合孔径 （mm) Pore dimension |
配合轴径 （mm) Shaft ID |
负荷 （N） Full load |
工作高度 （mm) Work Length |
自由高度 （mm) Free Length |
波数
Wave Number |
圈数
Coil Number |
| MW18 | 18 | 13 | 55 | 3.7 | 5.7 | 3.5 | 3 |
| MW20 | 20 | 14 | 70 | 3.1 | 6.3 | 3.5 | 3 |
| MW20 | 20 | 14 | 70 | 4.1 | 8.4 | 3.5 | 4 |
| MW25 | 25 | 19 | 80 | 3.0 | 6.6 | 3.5 | 3 |
| MW25 | 25 | 19 | 80 | 4.0 | 8.8 | 3.5 | 4 |
| MW28 | 28 | 22 | 80 | 4.4 | 7.2 | 3.5 | 3 |
| MW28 | 28 | 22 | 80 | 5.8 | 9.7 | 3.5 | 4 |
| MW30 | 30 | 24 | 90 | 3.5 | 7.6 | 3.5 | 3 |
| MW30 | 30 | 24 | 90 | 4.7 | 10.2 | 3.5 | 4 |
| MW30 | 30 | 24 | 90 | 5.9 | 12.7 | 3.5 | 5 |
| MW35 | 35 | 27 | 110 | 4.1 | 8.4 | 3.5 | 3 |
| MW35 | 35 | 27 | 110 | 5.5 | 11.2 | 3.5 | 4 |
| MW35 | 35 | 27 | 110 | 6.9 | 14.0 | 3.5 | 5 |
| MW40 | 40 | 30 | 150 | 5.4 | 9.1 | 3.5 | 3 |
| MW40 | 40 | 30 | 150 | 7.2 | 12.2 | 3.5 | 4 |
| MW40 | 40 | 30 | 150 | 9.0 | 15.2 | 3.5 | 5 |
| MW45 | 45 | 35 | 225 | 5.3 | 9.9 | 4.5 | 3 |
| MW45 | 45 | 35 | 225 | 7.0 | 13.2 | 4.5 | 4 |
| MW45 | 45 | 35 | 225 | 9.1 | 16.5 | 4.5 | 5 |
| MW50 | 50 | 40 | 225 | 4.6 | 10.3 | 4.5 | 3 |
| MW50 | 50 | 40 | 225 | 6.4 | 13.7 | 4.5 | 4 |
| MW50 | 50 | 40 | 225 | 7.5 | 17.2 | 4.5 | 5 |
| MW50 | 50 | 40 | 225 | 8.9 | 20.6 | 4.5 | 6 |
| MW55 | 55 | 45 | 250 | 3.1 | 11.1 | 4.5 | 3 |
| MW55 | 55 | 45 | 250 | 4.1 | 14.7 | 4.5 | 4 |
| MW55 | 55 | 45 | 250 | 5.2 | 18.4 | 4.5 | 5 |
| MW55 | 55 | 45 | 250 | 6.2 | 22.1 | 4.5 | 6 |
| MW60 | 60 | 50 | 275 | 6.7 | 11.4 | 4.5 | 3 |
| MW60 | 60 | 50 | 275 | 8.9 | 15.2 | 4.5 | 4 |
| MW60 | 60 | 50 | 275 | 11.1 | 19.1 | 4.5 | 5 |
| MW60 | 60 | 50 | 275 | 13.3 | 22.9 | 4.5 | 6 |
